Documentation

Maintaining a project

The first hour is drawing and building. Everything after it is keeping two things, a drawing and a codebase, from quietly disagreeing.

Bringing in code that already exists

You do not have to start from a drawing. Import code… on the board scans a repository and produces the graph from what is actually there: Next.js routes and screens, FastAPI endpoints, Prisma models and raw SQL schemas, with the edges between them.

The import screen, ready to scan a repository into a Software Graph. — Everything an import produces is marked as having come from `code`, which is what lets the merge rules protect your own edits later.

There is no node cap. A large repository produces a large graph, and the view handles scale. The scanner never decides your system is too big to describe.

An import is also what makes the sync layer useful: once every node knows its files, graph drift has something real to compare.

Changing the architecture on purpose

Edit the graph

Add a node, retype an edge, delete a service that is gone. Either on the canvas or directly in the graph panel.

Regenerate: only what changed

The graph is diffed against the snapshot the last plan came from, and you get scoped tasks that touch only the mapped files of what moved.

Build the delta

Same loop as before: Execute with a terminal connected, or graph run.

Check that it holds

graph check: no drift, no health errors. That is the point at which the drawing is true again.

A weekly rhythm that works

When	Do	Why
Every pull request	`graph check` in CI	Catches drift on the day it happens, not the month
After any hand-written refactor	`graph drift`	A refactor is exactly what moves code out from under the graph
Before planning new work	Import or sync	A plan made from a stale graph builds the wrong thing
When a scan gets noisy	Read the fingerprints	A finding you already judged stays recognisable; a new one is genuinely new
When somebody joins	Nothing	The link file is committed; they clone and run `graph setup`

Projects, from the terminal

What this account can open, with the id `graph link --project` takes.

And from the browser, with the extra things a list needs: last touched, whether it has a graph, whether it is still only a drawing.

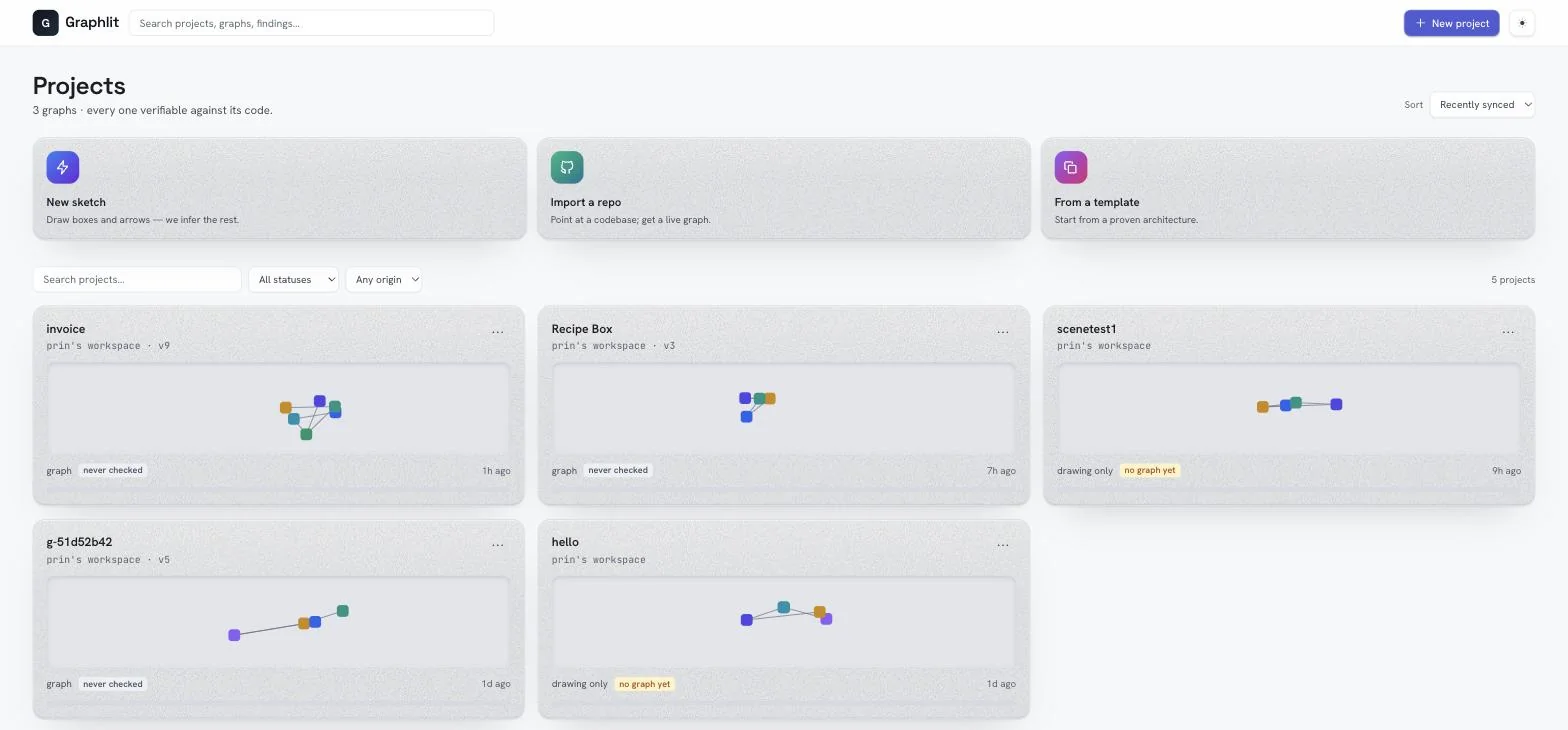

The projects screen listing every project with its state and when it was last touched.

Whose model key pays

Interpretation, expansion and planning need a model. Bring your own key and it is your key that pays. That is the default, and it wins over anything the platform holds.

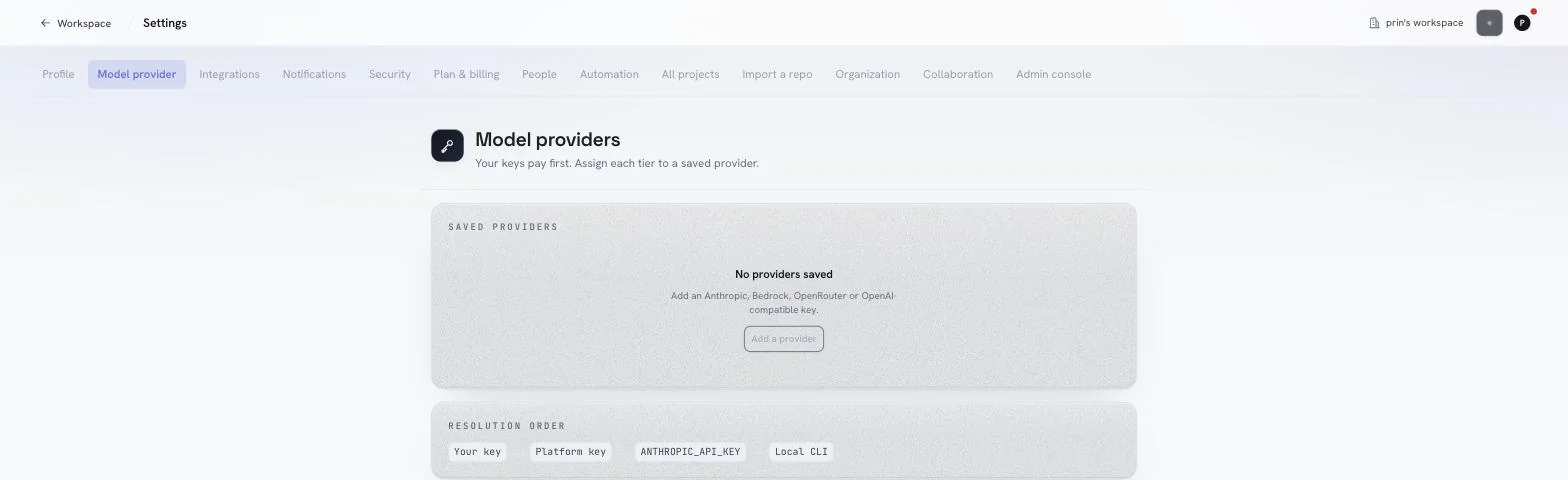

The model providers screen, showing saved providers and the resolution order: your key, then the platform key, then ANTHROPIC_API_KEY, then the local CLI. — **Resolution order is on the screen, not buried in a document.** Your key answers first; the local `claude` CLI is the last resort, which is why a self-hosted deployment works with nothing configured. An organisation can also hold several providers and point the *quality* and *fast* tiers at different ones.

Spend is visible per project on the Usage panel, and per organisation under Account → Billing.

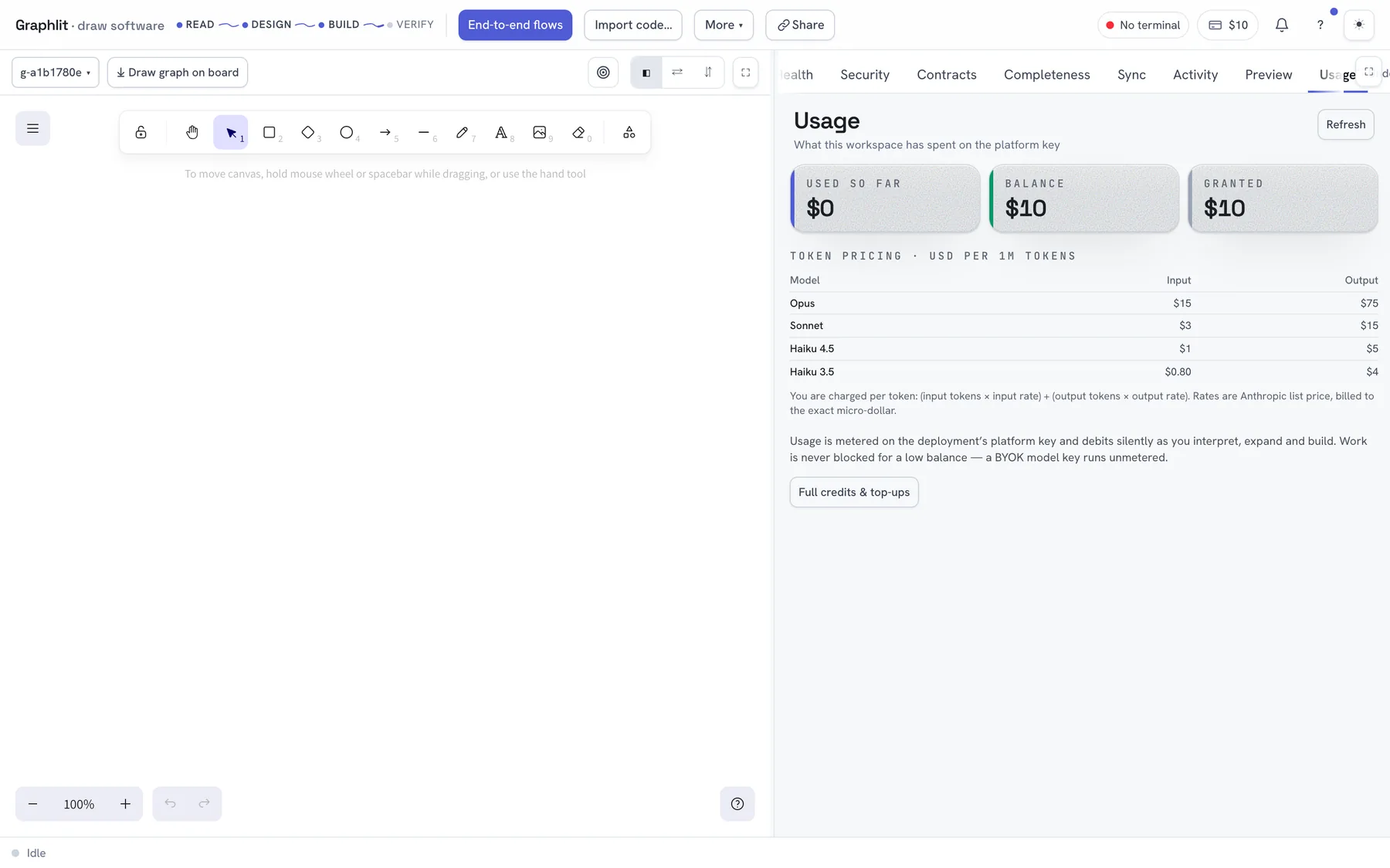

The usage panel showing model spend for this project.

The catalogue

The rule packs behind the health and security scans are visible, keyed to OWASP categories, so a finding can be traced to the rule that produced it rather than being an opinion from nowhere.

Keeping the deployment itself

Graphlit is also self-hostable, and everything in these docs works against your own deployment: point the CLI at it with graph login --api https://your-host, or set it once with graph config api https://your-host. A deployment with no identity provider configured treats every request as the owner, which is the right behaviour on a laptop and the reason hosting it for other people makes the issuer mandatory at startup.
